The Ultimate Guide to Silicone Tubing for Food & Beverage
AN INTRODUCTION TO SILICONE TUBING IN FOOD PROCESSING
In the food and beverage industry, the integrity of the final product is only as good as the components used to process it. From craft breweries to large-scale dairy operations, engineers and plant managers are increasingly turning to platinum-cured silicone tubing to solve complex transfer challenges. Unlike standard rubber hoses or lower-grade polymers, high-purity silicone offers a neutral, robust, and hygienic solution that protects flavor profiles while enduring rigorous processing environments.
For process engineers, the shift toward platinum-cured silicone represents a move toward reliability. It withstands extreme thermal cycling—from flash-freezing to steam sterilization—without losing flexibility or cracking. For procurement professionals, it signifies long-term value. By reducing the frequency of hose replacements and minimizing the risk of batch contamination, high-quality silicone tubing lowers the total cost of ownership.
This guide explores the latest advancements in platinum-cured silicone tubing technology, specifically tailored for the Food & Beverage sector. We will cover why purity matters, how these hoses handle aggressive cleaning cycles, and the compliance standards that keep your facility audit-ready.
THE PLATINUM ADVANTAGE: PURITY AND TASTE PRESERVATION
Not all silicone is created equal. In the past, peroxide-cured silicone was common due to its lower cost. However, it often left behind byproducts (blooming) that could taint the flavor or odor of sensitive food products.
The modern standard for F&B applications is platinum-cured silicone. This manufacturing method uses a platinum catalyst to cure the elastomer, resulting in a cleaner, purer material.
Why It Matters for Food & Beverage:
- Taste and Odor Neutrality: Platinum-cured tubing does not impart any taste or smell to the product. This is critical for beverage dispensing, wine transfer, and dairy processing where flavor nuances are essential.
- No Byproducts: The curing process leaves no benzoic acid or other organic residues, ensuring that the tubing is non-toxic and safe for direct food contact.
- Visual Clarity: These tubes offer superior transparency compared to peroxide-cured alternatives. This allows operators to visually monitor flow rates and check for air bubbles or blockages in the line, enhancing process control.
TECHNICAL PERFORMANCE: BUILT FOR EXTREMES
Food and beverage processing environments are rarely static. Tubing must perform reliably across a spectrum of pressures, temperatures, and mechanical stresses.
Temperature Versatility
Silicone is naturally thermally stable. Platinum-cured variants typically perform effectively from -60°C to 200°C (-75°F to 392°F).
- Hot-Fill Applications: Ideal for soups, sauces, and pasteurized beverages that are transferred hot.
- Deep Freeze: Remains flexible and does not become brittle in cryogenic freezing tunnels or ice cream manufacturing.
Durability in Peristaltic Pumps
One of the most common applications for silicone tubing in F&B is in peristaltic (dosing) pumps used for adding flavorings, colors, or preservatives.
- Latest Advances: Newer formulations of platinum-cured silicone offer extended pump life. They are engineered to resist fatigue and spallation (the shedding of particles from the inner wall) during long production runs, ensuring precise dosing without contamination.
Chemical and Cleaning Resistance
Sanitation is paramount. Platinum-cured silicone is compatible with standard Clean-in-Place (CIP) and Steam-in-Place (SIP) protocols. It resists degradation from many common caustic cleaning agents and can endure repeated autoclave cycles without gummy breakdown or hardening.
NAVIGATING COMPLIANCE: FDA, NSF, AND BEYOND
Regulatory compliance is not just a box to check; it is a shield against liability and recalls. Using the wrong material in a food contact surface can have disastrous consequences. Platinum-cured silicone tubing is heavily regulated to ensure safety.
- FDA 21 CFR 177.2600: This is the baseline standard for rubber articles intended for repeated use in producing, manufacturing, packing, processing, preparing, treating, packaging, transporting, or holding food.
- NSF/ANSI 51: This certification is specific to "Food Equipment Materials." Tubing with this rating has been rigorously tested to ensure it does not release harmful substances into food. It is often a requirement for commercial kitchen equipment and beverage dispensing systems.
- 3-A Sanitary Standards: Critical for the dairy industry, 3-A standards ensure that the tubing design allows for proper cleaning and sanitization, preventing bacterial harborages.
- USP Class VI: While primarily a medical standard, many high-end F&B producers prefer tubing that meets USP Class VI biological reactivity tests. It offers an extra layer of assurance regarding the material’s biocompatibility and purity.
For procurement managers, sourcing tubing that carries these certifications simplifies the audit process. It consolidates the supply chain by using a single, high-compliance material that satisfies multiple regulatory bodies globally.
APPLICATIONS IN THE FOOD & BEVERAGE SECTOR
The versatility of platinum-cured silicone allows it to be used across diverse segments of the industry.
Beverage Dispensing and Brewing
In microbreweries and soda dispensing, flavor carryover is a major concern. A hose used for a stout beer shouldn't make the next batch of pilsner taste roasted. The non-porous surface of platinum-cured silicone prevents flavor absorption, allowing for quick changeovers between product lines.
Dairy Processing
Dairy products are highly susceptible to bacterial growth. Silicone tubing with ultra-smooth inner bores prevents the accumulation of milk fats and proteins (biofilm), making cleaning cycles more effective and protecting product shelf life.
Commercial Kitchens and Vending

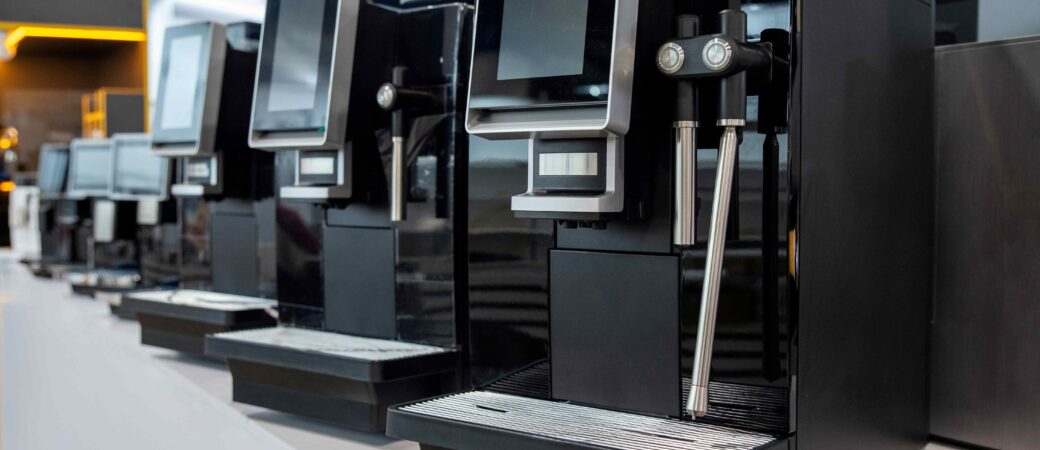

From coffee machines to frozen yogurt dispensers, silicone tubing is the unseen workhorse. Its flexibility allows it to be routed through tight spaces inside compact machinery without kinking or restricting flow.
THE MANUFACTURING PROCESS: ENSURING CONSISTENCY
The production of high-quality platinum-cured tubing occurs in controlled environments to prevent contamination from dust or airborne particles.
The process involves:
- Precision Extrusion: High-consistency rubber (HCR) is extruded through precise dies. Laser micrometers monitor dimensions in real-time to ensure consistent wall thickness.
- Platinum Curing: The tubing passes through continuous curing ovens. The platinum catalyst triggers a rapid cross-linking reaction.
- Post-Curing: A vital step often skipped by budget manufacturers. Post-curing drives off any remaining volatile compounds, maximizing the physical properties of the silicone and ensuring the lowest possible extractables.
For engineers, this controlled process guarantees that the tubing purchased today performs exactly like the tubing purchased six months ago.
CONCLUSION: SMART SOURCING FOR SAFETY AND EFFICIENCY
In the competitive Food & Beverage landscape, downtime is expensive and contamination is catastrophic. Platinum-cured silicone tubing offers a strategic advantage by addressing both risks simultaneously.
For Engineers: It provides a robust, flexible, and chemically inert solution that simplifies system design. Whether you are building a new filling line or maintaining a high-speed dosing pump, platinum silicone delivers predictable performance.
For Procurement Managers: It represents a safe investment. By standardizing on NSF and FDA-compliant platinum-cured silicone, you streamline inventory, simplify regulatory audits, and reduce the total cost of ownership through extended product lifespans.
Investing in the right tubing is investing in the quality of your brand. When purity, performance, and compliance are non-negotiable, platinum-cured silicone is the industry standard.
